SMART SOLAR BENCHES

Smart Solar Benches | Eco Renewable Energy

Smart Bench Mini



Ideal for shopping centres, retail parks, campuses and old bench replacements.



Smart Solar Benches | Eco Renewable Energy

Smart Bench



Ideal for streets, squares, bus or train stops, promenades & parks.



Smart Solar Benches | Eco Renewable Energy

Smart Bench 2



Ideal for old bench replacement, high footfall locations and urban areas such as business/ university campuses.



Why are these benches good for your brand?
  • They focus on sustainability & renewable energy.
  • Drive messaging about your company & your sustainability initiatives.
  • Innovative, new & unique – be the first to have your branding on these benches.
  • Encourage social media sharing to increase your brand exposure & awareness.
  • Provide free wifi spots in exchange for advertising on the landing pages.
Where would you use these benches?
  • Temporary (Events): Brand the benches with your messaging/ logos & create an advert/ message on the wifi landing page at your event/ brand activation.
  • Permanently (Schools/ Unis/ Outsides Corporate Offices/ Public Spaces): This is a great advertising opportunity for long term brand exposure or a great way to provide a renewable energy solution for your staff/ students/ visitors.

Not sure where to place the bench but you’d love to brand it? or do you have a space to place them but no branding budget? Either way, let us know and we will connect the 2 together providing some amazing spaces and great brands to work together to get these installed & generating solar energy!

Why did Ford install 20 Smart Benches in London?

Smart Solar Bench ‘Mini’

Great for: Mall visitors, Campuses (Schools, Unis & Businesses), outdoor parks or festivals/ events.

  • Minimal & Light – Easy to blend into the environment
  • Designed to be shared – USB & Wireless chargers on each side
  • Micro Curved Edges – No cuts, tears or scratches on phones or clothes
  • Beautiful interactive LED lights – That can be adjusted to your brand
  • 360 Degrees – Branding surface
  • Double Layer Paint – For extra durability
  • High Quality Materials – To withstand all weather conditions
  • USB Ports – specially designed for outdoors and vandal-proof
  • No tech maintenance/ installation required

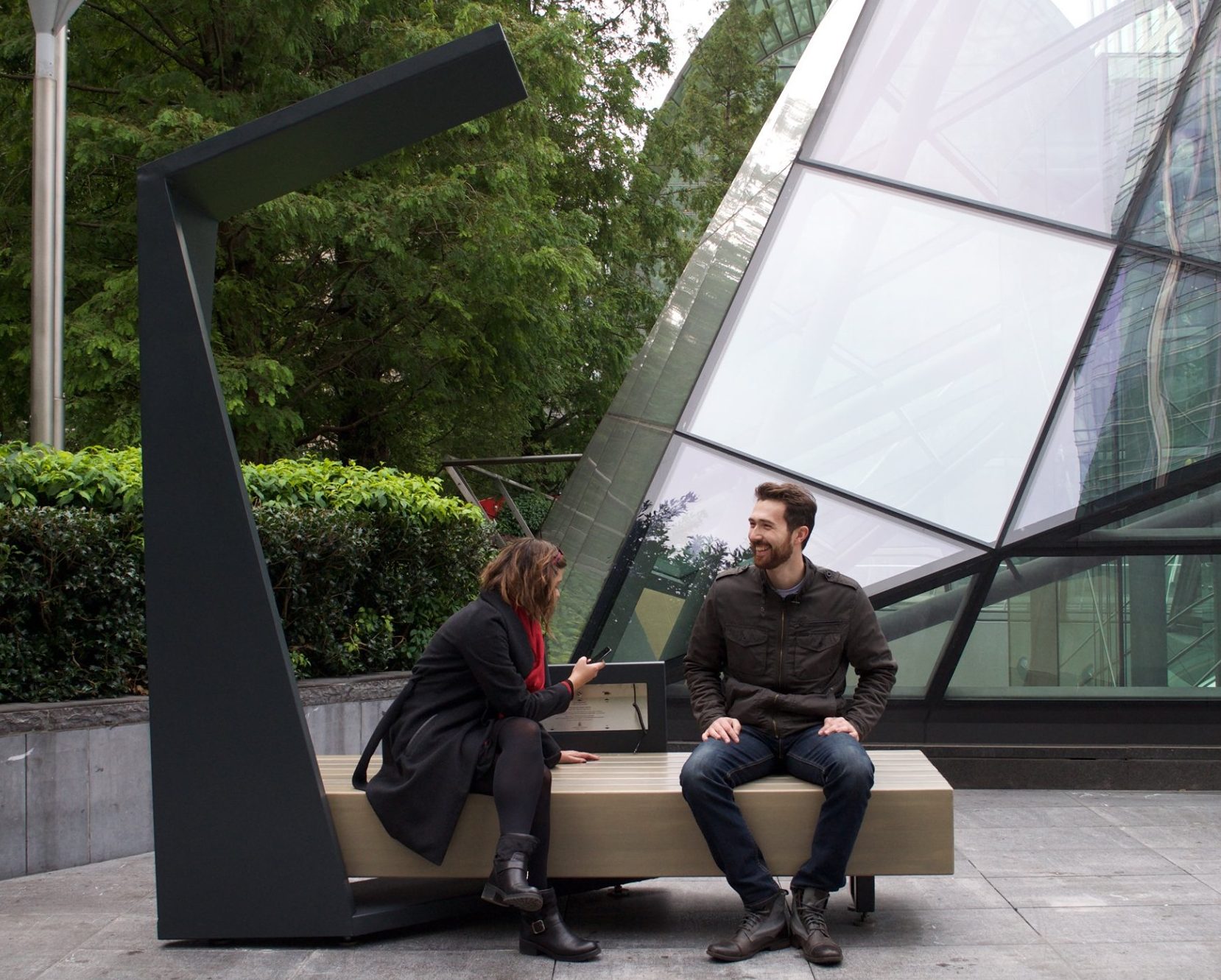

Smart Solar Bench #1

  • Futuristic and monumental design that grabs passersby attention
  • Slightly bigger than regular park bench, that can host groups of people
  • Branding surfaces that are suitable for innovative artwork design
  • Equipped with basic set of sensors
  • Easy maintenance
  • 100% standalone system that works 24/7, under all weather conditions
  • Installation on a specific location is managed by SE team

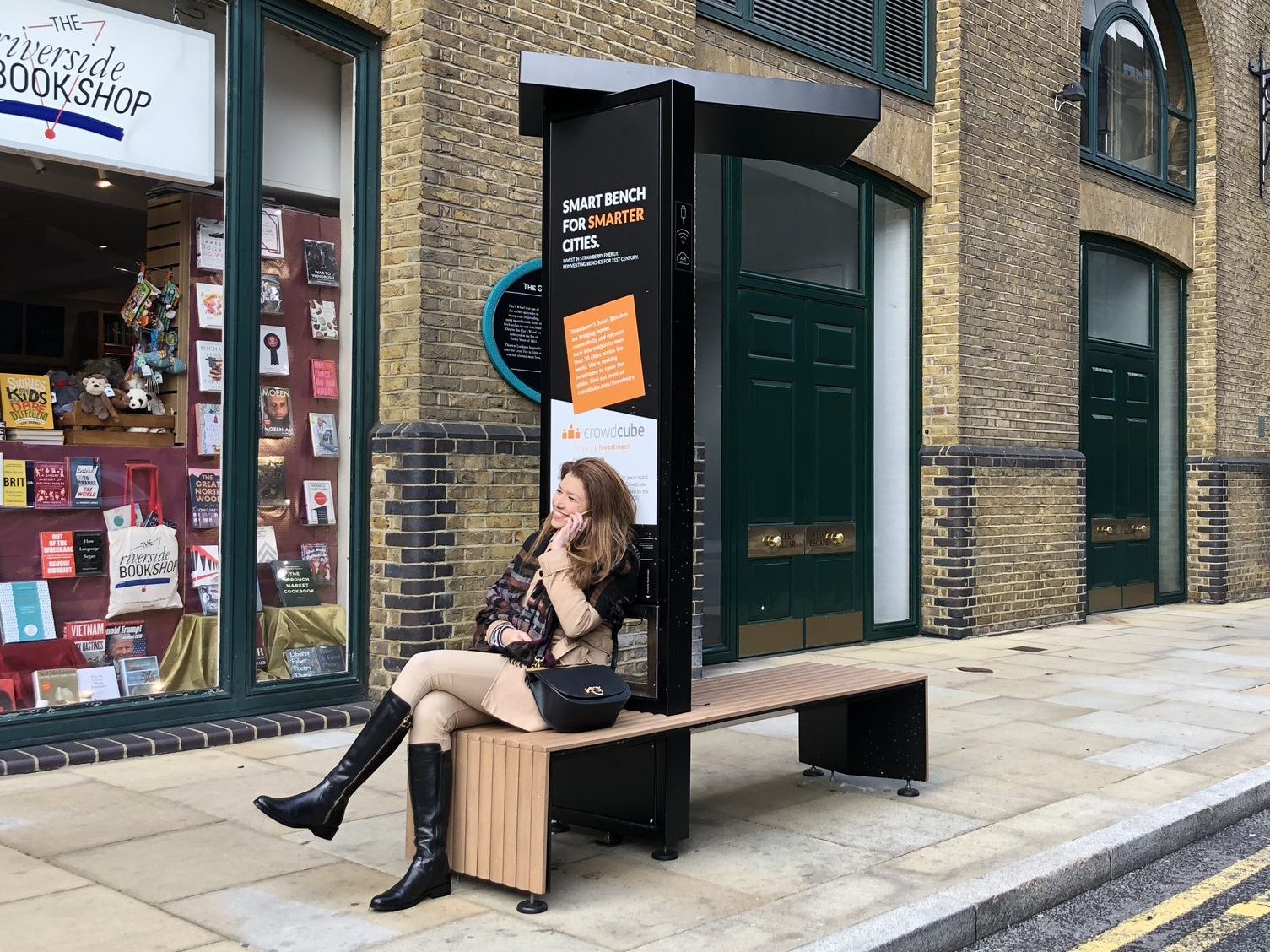

Smart Solar Bench #2

  • Modern appearance and elegant form
  • Similar footprint as a regular park bench with minimal public realm impact
  • Packed with an advanced set of sensors:
    • Environmental (temperature, humidity, air pressure, ambient noise)
    • Gas (CO, NO2, O3, SO2, N2S)
    • Particles (particle monitor, respiratory irritants)-(optional)
    • People counter-(optional)
  • Standard formats of artwork
  • Easy maintenance
  • 100% standalone system that works 24/7, under all weather conditions
  • Easy to install

Request a Quote

Technical Details

Comparison Table

Eco Renewable Energy | Smart Solar Benches

SSB Mini

Materials

  • Body is made of steel, whip blasted prior to coating and coated with two layers of primer and two layers of final industrial paint;
  • Seating area is made of transparent hard plastic material;
  • Solar panel is integrated beneath the seating area;
  • Wireless chargers are integrated into the seating area;
  • Batteries and all electronics are enclosed in waterproof casing in the steel body.

Power and electronics

  • Low voltage 12V battery system;
  • Solar panel – 90W to 120W of power;
  • Batteries – sealed AGM/GEL VRLA technology, 44Ah to 66Ah of total capacity;
  • MPPT charging controller;
  • Core electronics – embedded system for power and functional management of SSBM;
  • Mobile device chargers:
  •        2 USB charging ports, waterproof,
  •        1-2 wireless chargers which support Qi standard; ● Controlable LED lighting around wireless chargers.

Communication – optional, on request

  • Equipment for free public WI-Fi;
  • Wireless router;
  • Wi-Fi antenna;
  • 4G/LTE modem (SIM card required);
  • 4G/LTE antenna.

Branding surface – The “Mini” offers branding option on the steel body.

Digital assets – optional, on request

They consist of​ cloud-based dashboard, Wi-Fi landing page and mobile application. Cloud-based Dashboard

  • Access to historical and real-time usage statistics of SSBM;
  • Keep track of the performances of SSBM and maintain it accordingly.Wi-Fi Landing Page
  • Customizable content on Wi-Fi Landing Page;

Use Wi-Fi landing page to promote your product, services and relevant information.

Mobile App

  • Relevant data of all Strawberry devices;
  • Find the nearest Strawberry device;
  • Available for free to download it for iPhone and Android.
SSB1

Materials

  • Pillar, seat base and pedestal are made of steel and fastened together with screws to make a compact steel structure. All steel parts are coated with two layers of primer and two layers of final industrial paint;
  • Seating area is made of wooden beams;
  • User interface is made of 316 marine grade stainless steel;
  • Wireless charging area is integrated into wooden seat, close to interface;
  • Six leveling feet are made of stainless steel rod and hard pressure resistant plastic material;
  • Batteries and all electronics are enclosed in waterproof casing in the steel pedestal and in stainless steel interface.

Power and electronics

  • Low voltage 12V battery system;
  • Solar panel – 90W to 120W of power;
  • Batteries – sealed AGM/GEL VRLA technology, 44Ah to 88Ah of total capacity;
  • MPPT charging controller;
  • Core electronics – embedded system for power and functional management of SSB;
  • Environmental sensor station with sensors:
  •        Environmental (temperature, humidity, air pressure, ambient noise),
  •        Gas (CO2),
  • Mobile device chargers:
  •        2 USB charging ports, made of stainless steel and waterproof,
  •        2 rubber charging cables,
  •        2 wireless chargers which support Qi standard;
  • LED symbol for energy level.

Communication

  • Equipment for free public WI-Fi;
  • Wireless router;
  • Wi-Fi antennas;
  • 4G/LTE modem (SIM card required);
  • 4G/LTE antennas.

Branding surface

  • Two branding options – pillar (front and side) and door.
  • One user interface board.

Digital assets

They consist of cloud-based dashboard, Wi-Fi landing page and mobile application. Cloud-based Dashboard

  • Access to historical and real-time usage statistics of the SSB;
  • Track the health of the environment around the SSB via built-in environmental sensors;
  • Keep track of the performances of SSB and maintain it accordingly.

Wi-Fi Landing Page

  • Customizable content on Wi-Fi Landing Page;
  • Use Wi-Fi landing page to promote your product, services and relevant information.

Mobile App

  • Relevant data of all Strawberry devices;
  • Access to real-time environmental data;
  • Find the nearest Strawberry device;
  • Available for free to download it for iPhone and Android.
SSB2

Materials

  • Pillar, solar panel base and seat base are made of steel and fastened together with screws to make a compact steel structure. All steel parts are whip blasted prior to coating and coated with two layers of primer and two layers of final industrial paint;
  • Seating area is made of wood coated in oil;
  •  User interface is made of 316 marine grade stainless steel;
  • Wireless charging area of the interface as well as pillar LED symbols are made of black tempered glass;
  • Six leveling feet are made of stainless steel rod and hard pressure resistant plastic material;
  • Batteries and all electronics are enclosed in waterproof casing in the steel pillar and in stainless steel interface.

Power and electronics

  • Low voltage 12V battery system;
  • Solar panel – 90W to 120W of power;
  • Batteries – sealed AGM/GEL VRLA technology, 44Ah to 132Ah of total capacity;
  • MPPT charging controller;
  • Core electronics – embedded system for power and functional management of SSB2;
  • Environmental sensor station with sensors:*
  •        Environmental (temperature, humidity, air pressure),
  •        Gas (CO, NO2, O3, SO2, N2S),**
  •        Particles (particle monitor, respiratory irritants);***
  • Mobile device chargers:****
  •        2-4 USB charging ports, made of stainless steel and waterproof,
  •        2-4 rubber charging cables,
  •        2 wireless chargers which support Qi standard;
  • LED rings around wireless chargers;
  • LED symbols for Wi-Fi, battery, air quality and strawberry (part of Strawberry energy logo);
  • Start button.

Communication

  • Equipment for free public WI-Fi;
  • Wireless router;
  • Wi-Fi antennas;
  • 4G/LTE modem (SIM card required);
  • 4G/LTE antennas.
 Branding surface
  • Two branding options – one per side of the pillar;
  • Two user interface boards – one per side of the pillar.

Digital assets

Digital assets accompanying SSB2 are cloud-based dashboard, Wi-Fi landing page and mobile application. Cloud-based Dashboard (accessible by the Grantor)

  • Historical and real-time usage statistics of the SSB2;
  • Historical and real-time data from environmental sensors built-in the Smart Bench installed

Wi-Fi Landing Page

  • Customizable content on Wi-Fi Landing Page, including logos and branding by the sponsor.

Mobile App (available for free to download it for iPhone and Android)

  • Real-time data from environmental sensors built-in
  • Locations of all Smart Benches and routes to them.
